Getting Start with Arduino Web Editor
The Arduino Web Editor, also known as Arduino Web IDE, is an online platform that allows you to write code, access content, and manage your projects directly from your web browser. It supports all Arduino boards and is compatible with all major operating systems. The Web Editor is fully cloud-synced, allowing you to work on your projects from any device, anywhere, at any time.
Materials Needed
- Arduino Mega 2560 R3
- USB 2.0 Cable Type A/B
- Arduino Account
- Arduino Create Agent
How to set up Arduino Web Editor
Here is a basic guide to get started with the Arduino Web Editor:
1. Create an Arduino Account:
First, you’ll need to create an Arduino account. Visit create.arduino.cc and sign up with your email address.
2. Install Arduino Create Agent:
The Arduino Create Agent is a small piece of software that allows the Arduino Web Editor to communicate with the Arduino boards connected to your computer. After logging in, you’ll be prompted to install it. Just follow the on-screen instructions.
3. Connect Your Arduino Board:
Once the Arduino Create Agent is installed, you can connect your Arduino board to your computer.
4. Select Your Board and Port:

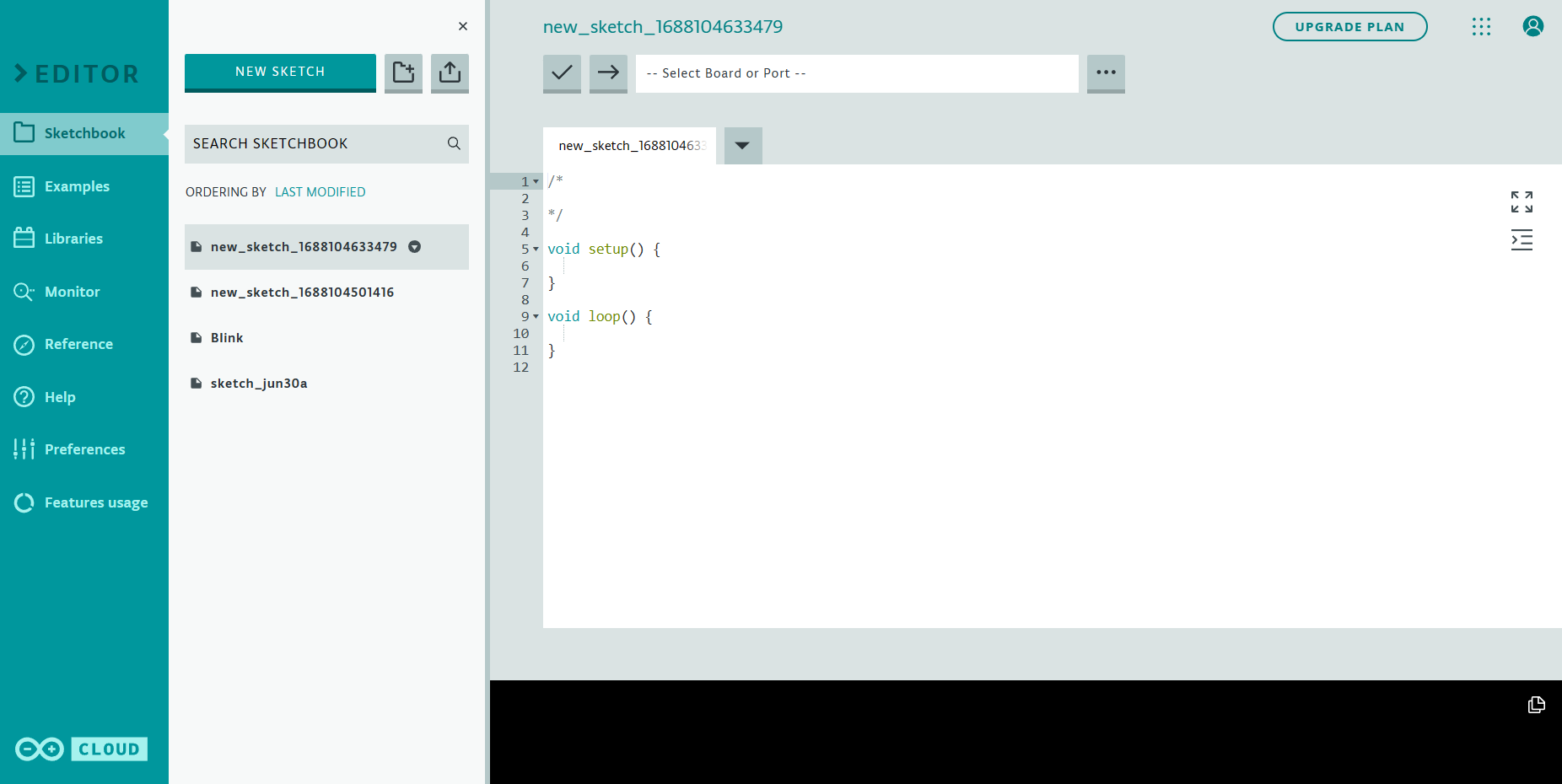

In the Arduino Web Editor, go to the ‘Select Board and Port’ section at the top of the page. Here, choose your Arduino board and the port it’s connected to. The Web Editor should automatically detect your board and the port.
5. Write or Upload Your Sketch:
Now, you can start programming. You can either write a new sketch from scratch or upload an existing one.
6. Verify and Upload the Sketch:
Once you’ve written or uploaded your sketch, you can click the ‘Verify’ button (marked with a tick) to compile it and check for any errors. If it compiles successfully, you can upload it to your Arduino board by clicking the ‘Upload’ button (marked with a right-arrow). If everything is in order, your sketch should now be running on your Arduino board.
7. Monitor Your Board:
The Arduino Web Editor also includes a Serial Monitor, which allows you to see any debug output from your board. You can access it from the side menu.
Remember, all your sketches and libraries are stored in the cloud, so you can access them from any device without the need to manually sync your data.
In the next steps of learning Arduino programming, you may want to explore built-in examples and tutorials available in the Arduino Web Editor. These can be excellent resources to learn more complex coding techniques and working with various sensors and actuators.
